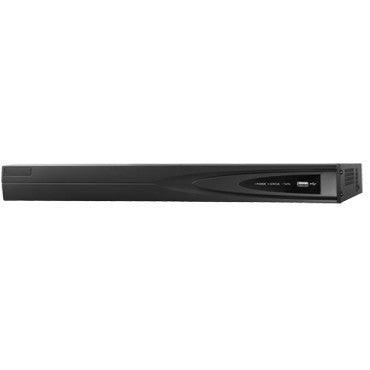

16 CHANNEL HD 3MP TVI TRIBRID DVR

16 CHANNEL HD 3MP TVI TRIBRID DVR

$349.00 $698.00
ISI-HDVR1604-3MP
  • H.264 & Dual-stream video compression
  • H.264+ compression improves encoding efficiency by up to 50%
  • Support HD-TVI Up to 3MP/analog/IP camera triple hybrid
  • Support both HD-TVI and analog cameras with adaptive access
  • Full Channel Recording at up to 3MP Resolution
  • HDMI Output up to 4k and VGA output at up to 1920×1080P resolution
  • Long transmission distance over coax cable
  • Full Channel Synchronous Playback
  • Support Cloud storage(One Drive, Google Drive or Drop Box)
  • Up to 2-ch 4MP ONVIF Conformant IP Camera Input .,



Technical Specifications
Model No. HDVR1604-3MP
Video/Audio input
Video compression H.264,H.264+
Video input 4-ch
Video input interface BNC (1.0 Vp-p, 75 ?)
Supported Camera Types 3MP,720P25, 720P30, 720P50, 720P60, 1080P25, 1080P30, CVBS
Audio compression G.711u
Audio input 1-ch
Audio input interface RCA (2.0 Vp-p, 1 k?)
Video /Audio output
HDMI output 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 ×1440)/60Hz, 1920 × 1080/60 Hz, 1280 ×
1024/60 Hz, 1280 × 720/60Hz, 1024 ×768/60 Hz
VGA output 1-ch, resolution: 1920×1080P / 60Hz, 1280×1024 / 60Hz, 1280×720 / 60Hz, 1024×768 / 60Hz
CVBS Output 1-ch,BNC(1.0Vp-p,75?),resolution:PAL:704x576,NTSC:704x480
Recording resolution Mainstream:3Mp@15fps/1080p/720p/WD1/4CIF
Sub-stream:WD1/4CIF@12fps(non-real-time);CIF/QVGA/QCIF(real-time)
Frame rate Main stream:25fps(p)/30fps(N)
Sub-sream:WD1/4CIF@12fps(non-real-time);CIF/QVGA/QCIF(real-time)
Video bit rate 32 Kbps-10 Mbps
Audio output 1-ch, RCA (Linear, 1 k?)
Audio bit rate 64 Kbps
Dual-stream Support
Stream type Video, Video & Audio
Synchronous playback 4-ch
Playback Resolution 3MP/1080P/720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF
Network Management
Remote Connections 128
Network Protocols TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS
Hard Disk
SATA 2 SATA interface
Capacity Up to 8TB capacity for each disk
External interface
Network interface 1; 10M / 100M / 1000M self-adaptive Ethernet interface
Serial interface 1; standard RS-485 serial interface, half-duplex
USB interface 2x USB2.0
General
Power supply 12V DC
Consumption ? 20 W
Working temperature -10 ºC ~+55 ºC (14 ºF ~ 131 ºF)
Working humidity 10% ~ 90%
Chassis 1U chassis
Dimensions 315 × 242 × 45mm (12.4 × 9.5 × 1.8 inch)
Weight ? 1.5Kg (3.3lb)
