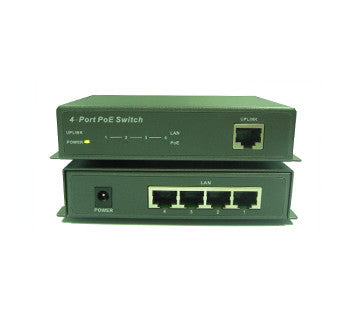

4 PORT 100/1000 MBPS WITH GIB UPLINK PORT BASE-T POE SWITCH

$114.00 ~~$297.00~~

ISI-POE-104

ISI-POE-104 is a 4-port 10M/100M Fast PoE Switch with one uplink port + 4 ports of Power over Ethernet capability. Per PoE port is power supply up to 15.4W. The total POE power budget is 65W, Compataible with IEEE 802.3af, Supports Up to 65 W of POE power, Easy Installation - Parallel Slid-in Design, Support 10/100 Base-T Lan Environment, Safety Protection on Low Power Devices.

No. OF POE Ports 4
Pass Through Data Rates 10/100 Mbps
Switch Type External
Standard • IEEE 802.3: 10 BASE-T
• IEEE 802.3u: 100 BASE-TX
• IEEE 802.3af: Power Over Ethernet
POE Spec • Supports up to 15.4 W for each PoE port
• PD classification identify
• PoE over current protection
• PoE circuit sorting protection
• PoE power on RJ-45 pin 3,6 for power + / pin 1,2 for power
MAC Address Table 1K
Buffer Memory 512K bits
Transmission Method Store and Forward
Pin Assignment and Polarity 1/2 (+), 3/6 (–) or 4/5(+),7/8(-)
Output Power Voltage 52 VDC Maximum
User Port Power 65 Watts Maximum
Input Power AC Input Voltage 100 ~ 240 VAC
Requirements AC Input Current 100-240 VAC (External Power Adapter)
AC Frequency 50 to 60 Hz
Dimensions 1.1" x 3.54" x 4.72" (28mm x 90 mm x 120 mm)
Weight 12.25 Oz(350g)
LED Indicators System Indicator: AC Power, DATA Activity
Connectors RJ-45
Operating Ambient Temperature 14ºF to 113 ºF (-10? to 45 ?)
Regulatory IEEE 802.3ax, RoHS Compliant, CE/FCC
No. OF POE Ports 1
Pass Through Data Rates 10/100 Mbps
Pin Assignment and Polarity 1/2 (+), 3/6 (–) or 4/5(+),7/8(-)
Output Power Voltage 52 VDC Maximum
User Port Power 30 Watts Maximum
Input Power AC Input Voltage 100 ~ 240 VAC
Requirements AC Input Current 0.8A @ 100-240 VAC
AC Frequency 50 to 60 Hz
Dimensions 2.74" x 1.6" x 5.2" (87.9 mm x 51.3 mm x 166 mm)
Weight 12.25 Oz(350g)
Indicators System Indicator: AC Power (Green)
Connectors RJ-45
Operating Ambient Temperature -10 to 45 ?
Regulatory IEEE 802.3at/af, RoHS Compliant, CE/FCC
