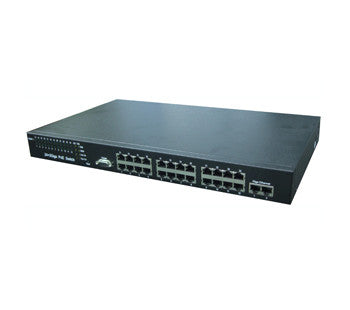

16 PORT 100/1000 MBPS WITH GIB UPLINK PORT BASE-T POE SWITCH

$284.00 ~~$699.00~~

ISI-POE-116

ISI-POE-116 is a 16-Port 10M/100M Fast Ethernet POE Switch with 2-Port 10M/100M/1000M . Each port is power supply up to 15.4W. The total PoE power budget is 200W, Compataible with IEEE 802.3af, Supports Up to 200 W of POE power, Easy Installation - Parallel Slid-in Design, Support 10/100 Base-T Lan Environment, Safety Protection on Low Power Devices.

No. OF POE Ports 16-port 10/100BaseT(X) with PoE (Lite/ Full power) +2 Gigabit ports
Pass Through Data Rates 10/100 Mbps
Switch Type RAckmount
Standard • IEEE 802.3 10BaseT
• IEEE 802.3u 100BaseTX
• IEEE 802.3x Full-duplex and Flow Control
• IEEE 802.3af Power over Ethernet
• IEEE 802.1Q VLAN
• IEEE 802.1p QoS
• IEEE 802.3ad LACP
• IEEE 802.1x Port-based Network Access Control
• IEEE 802.1d Spanning Tree Protocol
• IEEE 802.1w Rapid Spanning Tree Protocol
POE Spec • Supports up to 15.4 W for each PoE port
• PD classification identify
• PoE over current protection
• PoE circuit sorting protection
• PoE power on RJ-45 pin 3,6 for power + / pin 1,2 for power
MAC Address Table 4K
Buffer Memory 2750K bits
Transmission Method Store and Forward
Pin Assignment and Polarity 1/2 (+), 3/6 (–) or 4/5(+),7/8(-)
Output Power Voltage 52 VDC Maximum
User Port Power 200 Watts Maximum
Input Power AC Input Voltage 100 ~ 240 VAC
Requirements AC Input Current 100-240 VAC (External Power Adapter)
AC Frequency 50 to 60 Hz
Dimensions 17.3" x 8.6" x 1.73" (440mm x 220 mm x 44 mm)
Weight 7.2 lb(3.25 Kg)
LED Indicators System Indicator: AC Power, DATA Activity
Connectors RJ-45
Operating Ambient Temperature 14ºF to 113 ºF (-10? to 45 ?)
Regulatory IEEE 802.3ax, RoHS Compliant, CE/FCC
No. OF POE Ports 8
Pass Through Data Rates 10/100 Mbps
Switch Type Rackmount
Standard • IEEE 802.3: 10 BASE-T
• IEEE 802.3u: 100 BASE-TX
• IEEE 802.3x Full-duplex and Flow Control
• IEEE 802.3af: Power Over Ethernet
POE Spec • Supports up to 15.4 W for each PoE port
• PD classification identify
• PoE over current protection
• PoE circuit sorting protection
• PoE power on RJ-45 pin 3,6 for power + / pin 1,2 for power
MAC Address Table 4K
Buffer Memory 1625K bits
Transmission Method Store and Forward
Pin Assignment and Polarity 1/2 (+), 3/6 (–) or 4/5(+),7/8(-)
Output Power Voltage 48V/DC per Port Output, 52 VDC Maximum
User Port Power 130 Watts Maximum
Input Power AC Input Voltage 100 ~ 240 VAC
Requirements AC Input Current 100-240 VAC (External Power Adapter)
AC Frequency 50 to 60 Hz
Dimensions 10.5" x 6.3" x 1.73" (266mm x 160 mm x 44 mm)
Weight 5.6 lb(1.6 kg)
LED Indicators • Per Port: Link / Act, PoE
• PoE Port: Act/ Status
• Per Unit: Power
Connectors RJ-45
Operating Ambient Temperature 14ºF to 113 ºF (-10? to 45 ?)
Regulatory IEEE 802.3ax, RoHS Compliant, CE/FCC, LVD
No. OF POE Ports 4
Pass Through Data Rates 10/100 Mbps
Switch Type External
Standard • IEEE 802.3: 10 BASE-T
• IEEE 802.3u: 100 BASE-TX
• IEEE 802.3af: Power Over Ethernet
POE Spec • Supports up to 15.4 W for each PoE port
• PD classification identify
• PoE over current protection
• PoE circuit sorting protection
• PoE power on RJ-45 pin 3,6 for power + / pin 1,2 for power
MAC Address Table 1K
Buffer Memory 512K bits
Transmission Method Store and Forward
Pin Assignment and Polarity 1/2 (+), 3/6 (–) or 4/5(+),7/8(-)
Output Power Voltage 52 VDC Maximum
User Port Power 65 Watts Maximum
Input Power AC Input Voltage 100 ~ 240 VAC
Requirements AC Input Current 100-240 VAC (External Power Adapter)
AC Frequency 50 to 60 Hz
Dimensions 1.1" x 3.54" x 4.72" (28mm x 90 mm x 120 mm)
Weight 12.25 Oz(350g)
LED Indicators System Indicator: AC Power, DATA Activity
Connectors RJ-45
Operating Ambient Temperature 14ºF to 113 ºF (-10? to 45 ?)
Regulatory IEEE 802.3ax, RoHS Compliant, CE/FCC
No. OF POE Ports 1
Pass Through Data Rates 10/100 Mbps
Pin Assignment and Polarity 1/2 (+), 3/6 (–) or 4/5(+),7/8(-)
Output Power Voltage 52 VDC Maximum
User Port Power 30 Watts Maximum
Input Power AC Input Voltage 100 ~ 240 VAC
Requirements AC Input Current 0.8A @ 100-240 VAC
AC Frequency 50 to 60 Hz
Dimensions 2.74" x 1.6" x 5.2" (87.9 mm x 51.3 mm x 166 mm)
Weight 12.25 Oz(350g)
Indicators System Indicator: AC Power (Green)
Connectors RJ-45
Operating Ambient Temperature -10 to 45 ?
Regulatory IEEE 802.3at/af, RoHS Compliant, CE/FCC
